> For the complete documentation index, see [llms.txt](https://osh.fducslg.com/notes/llms.txt). Markdown versions of documentation pages are available by appending `.md` to page URLs; this page is available as [Markdown](https://osh.fducslg.com/notes/operating-systems/linux-task.md). # Case Study: Linux Task Model In the Linux kernel, both threads and processes are encapsulated using the `task_struct` structure, making them both "tasks." Their distinction arises from the concept of thread groups. 1. **task\_struct**: The Linux kernel's primary structure for representing either a process or a thread. It encompasses all essential details about a task, such as state, priority, open files, memory mappings, and more. 2. **Thread Group**: In Linux, a process is a collection of one or more threads. Each thread is a task. The distinction between a standalone task (process) and a task within a group (thread) is made using the thread group ID (`tgid`). For a single-threaded process, its PID and TGID are identical. For a multi-threaded process, the TGID matches the main thread's PID, and all threads within this process share this TGID. However, each thread retains its unique PID. * `getpid()` returns the PID of the calling process. * `gettid()` returns the PID of the calling thread. ## Task Life Cycle | State | Description | | ---------------------- | ------------------------------------------------------------------------------------------------------------------------------------------ | | `TASK_NEW` (Linux 4.8) | Prevents the task from executing. | | `TASK_RUNNING` | Represents tasks either currently executing or waiting in the runqueue. Tasks in this state are eligible for CPU execution. | | `TASK_INTERRUPTIBLE` | Tasks wait for specific conditions or resources and can be awakened by signals. Typically seen when tasks await disk data. | | `TASK_UNINTERRUPTIBLE` | Like `TASK_INTERRUPTIBLE`, but tasks don't wake up for signals. Used for operations where interruptions may cause inconsistencies. | | `TASK_STOPPED` | Tasks are halted by signals like `SIGSTOP` and can resume with `SIGCONT`. This state is signal-induced, not due to an awaited condition. | | `EXIT_ZOMBIE` | Tasks have finished but remain in the task table, awaiting their parent to read the exit status. They are removed once the status is read. | ## Thread Family The kernel's first process, often known as the idle or swapper process, is initialized at launch with PID 0 and is responsible for managing CPU idle time. When the kernel is booted, the `start_kernel()` function is called to establish its core data structures, including initializing the `init_task` and call `cpu_idle()` to make itself be the idle process. After completing the initial setup, the `rest_init()` function is called at the end of `start_kernel()` to continue the initialization process, which includes starting kernel threads that will eventually launch the first user-space process, `init`, with PID 1. This `init` process then invokes the `execve` system call to execute the user-space initialization program, typically `/sbin/init` or a modern equivalent like `/bin/systemd`. This process becomes the parent of all other user-space processes and is responsible for the system's further initialization, which may or may not involve reading the `/etc/inittab` file, depending on the init system in use. ## `task_struct` | Field Name | Data Type | Description | | -------------- | --------------- | -------------------------------------------------------------------------------------------------------------------------- | | `tasks` | `list_head` | All `task_struct` instances are connected via this doubly linked list. The head of the list is represented by `init_task`. | | `thread_group` | `list_head` | Represents all the threads within the same process group. | | `stack` | `void*` | Pointer to the kernel stack of the task. | | `mm` | `mm_struct *` | Points to the memory layout information of the task. This structure can be used to locate the user-space stack. | | `pid` | `pid_t` | Process ID of the task. | | `state` | `long` | Current state of the process. Common states include `TASK_RUNNING`, `TASK_INTERRUPTIBLE`, and `TASK_UNINTERRUPTIBLE`. | | `priority` | `int` | Static priority of the task. | | `cpus_allowed` | `cpumask_t` | CPU affinity mask. | | `flags` | `unsigned int` | Process flags. | | `exit_code` | `int` | Exit code returned when the task terminates. | | `parent` | `task_struct *` | Pointer to the parent process. | | `children` | `list_head` | List of child processes. | | `next_task` | `task_struct *` | Pointer to the next task in the runnable list. | | `prev_task` | `task_struct *` | Pointer to the previous task in the runnable list. | ## Macros ### **`next_task(p)`** This macro fetches the next task in the task list, given the current task `p`. ```c #define next_task(p) \ list_entry_rcu((p)->tasks.next, struct task_struct, tasks) ``` The `list_entry_rcu` function is a mechanism to fetch the entry from a given linked list pointer, in this case, the `tasks` list of task structures. It ensures the safe traversal of the list in a RCU (Read-Copy-Update) protected context. ### **`next_thread(p)`** This macro is used to fetch the next thread of a given task `p`. In Linux, threads are essentially tasks that share certain resources with other tasks. Threads are connected in a list, similar to tasks, which this macro helps traverse. ### **`for_each_process(p)`** This macro provides a way to iterate over all tasks in the system, starting from the `init_task`, which is the initial task started by the kernel. ```c #define for_each_process(p) \ for (p = &init_task ; (p = next_task(p)) != &init_task ; ) ``` Here, the loop will continue fetching the next task until it wraps around and reaches the `init_task` again. ### **`current()`** In Linux kernel 4.0 and earlier versions, the `thread_info` structure, which contains information about a thread, is stored at the bottom of the kernel stack. To fetch the current process (or thread) on architectures like Arm32, we can locate the `thread_info` by first accessing the kernel stack using the `SP` (Stack Pointer) register. However, with the introduction of Linux kernel 5.0, there was a significant change. A new configuration option called `CONFIG_THREAD_INFO_IN_TASK` was added. When this option is enabled, the `thread_info` is situated directly within the `task_struct`, which is the main data structure representing a task or thread in the kernel. By placing the `thread_info` inside the `task_struct`, it becomes less prone to corruption due to certain stack overflow scenarios, thereby enhancing the kernel's stability and security. ## Primitives Linux augments the POSIX `fork()` primitive with the additions of `vfork()` and `clone()`. All three methods are underpinned by the `_do_fork()` function. ```c #include #include pid_t fork(void); ``` The `fork()` syscall is implemented as: ```c SYSCALL_DEFINE0(fork) { return _do_fork(SIGCHLD, 0, 0, NULL, NULL, 0); } ``` However, `fork()` can be less efficient as it necessitates the copying of the parent process's page table, even with copy-on-write optimization. `vfork()` addresses some of the drawbacks of `fork()`: ```c SYSCALL_DEFINE0(vfork) { return _do_fork(CLONE_VFORK | CLONE_VM | SIGCHLD, 0, 0, NULL, NULL, 0); } ``` ### Key Differences between `fork()` and `vfork()` | Criteria | `fork()` | `vfork()` | | ------------------------------ | ------------------------------------------------------------------ | --------------------------------------------------------------------------------------- | | **Memory Semantics** | Duplicates the address space of the parent (uses "copy-on-write"). | Shares the address space with the parent until a call to `execve()` or `_exit()`. | | **Blocking of Parent Process** | Both processes run concurrently. | The parent process is halted until the child process exits or executes another program. | | **Overhead** | Can be higher, especially with large address spaces. | Typically lower since it doesn't duplicate the address space. | | **Usage** | For duplicating processes. | Primarily for the child to execute another program. | | **Safety** | Safer due to memory isolation. | Riskier due to shared memory. | `clone()` is a more versatile syscall, typically employed for creating user-level threads. It provides granular control over the inheritance of the parent's resources: ```c #include int clone(int (*fn)(void *), void *child_stack, int flags, void *arg, ...); ``` Its syscall definition is: ```c SYSCALL_DEFINE5(clone, unsigned long, clone_flags, unsigned long, newsp, int __user *, parent_tidptr, int __user *, child_tidptr, unsigned long, tls) { return _do_fork(clone_flags, newsp, 0, parent_tidptr, child_tidptr, tls); } ``` ### Thread Termination Scenarios Threads can terminate due to the following: * Voluntary return from `main` * Voluntary call to `exit()` * Unhandled signals * Kernel mode exceptions * Reception of `SIGKILL` Post-termination, if the child concludes before the parent, the latter must reap the former's "zombie" state using `wait()`. If the child outlives the parent, the `init` process adopts it. ```c SYSCALL_DEFINE1(exit, int, error_code) { do_exit((error_code&0xff)<<8); } ``` Zombies exist to let the system retrieve termination reasons. After using the `wait()` syscall to glean this information, the kernel discards the child's `task_struct`. Related system calls to `wait()` include: ```c asmlinkage long sys_wait4(pid_t pid, int __user *stat_addr, int options, struct rusage __user *ru); asmlinkage long sys_waitpid(pid_t pid, int __user *stat_addr, int options); asmlinkage long sys_waitid(int which, pid_t pid, struct siginfo __user *infop, int options, struct rusage __user *ru); ``` ## Kernel Thread Kernel threads do not have a standalone address space and can only run in the memory space of the kernel. A typical kernel thread includes the page recycle thread kswapd. To create a Linux kernel thread, you can use the following functions: ``` kthread_create(threadfn, data, namefmt, arg, ...) kthread_run(threadfn, data, namefmt, ...) ``` The thread created by `kthread_create` is stopped, and you need to call `wake_up_process` to wake it up and add it to the ready queue. To create a thread that is ready to run, simply use `kthread_run()`. The underlying implementation of `kernel_thread` is done through `_do_fork()`. ## Creation of Tasks Typical call stack: ```c fork() -> _do_fork() -> copy_process() ``` Functions called in `copy_process()`: 1. **dup\_task\_struct()**: This creates a duplicate of the current task's task structure. 2. **init\_task()**: It initializes various task parameters for the newly created process. 3. **copy\_flags()**: Adjusts flags based on the original process and the nature of the forking/cloning. 4. **copy\_files()**, **copy\_fs()**, **copy\_sighand()**, **copy\_signal()**, **copy\_mm()**, **copy\_namespaces()**, etc.: These functions copy or share different aspects of the process context depending on the flags passed to the clone system call. For example, if `CLONE_FILES` is set, `copy_files()` would share file descriptors between the parent and child processes, otherwise, it creates a copy. 5. **copy\_thread()**: Responsible for copying architecture-specific thread-related data. In the x86 architecture, it sets up the new process's kernel stack and process state. 6. **pid\_alloc()**: Allocates a PID (Process ID) for the new process. 7. **sched\_fork()**: Prepares the new process for scheduling. 8. **wake\_up\_new\_task()**: Once the new process has been set up, this function is called to put the new task on the run queue, ready to be scheduled by the CPU. 9. **audit\_fork()**: If auditing is enabled, this function records the fork event. 10. **ptrace\_fork()**: If the parent process is being traced (e.g., by a debugger), this function ensures that the child is also traced. 11. **perf\_event\_fork()**: If performance events are being tracked, they are updated for the new process here. ### `_do_fork()` ```c long _do_fork(unsigned long clone_flags, unsigned long stack_start, unsigned long stack_size, int __user *parent_tidptr, int __user *child_tidptr, unsigned long tls) ``` 1. `clone_flags`: the flags for creating a process | Flag | Description | | ---------------------- | ----------------------------------------------------------------------------------------------------------------- | | **`CLONE_VM`** | **Child shares the same memory space as the parent (typically for threads).** | | **`CLONE_FS`** | **Child shares file system information (root, current directory, umask) with the parent.** | | `CLONE_FILES` | Child shares the file descriptor table with the parent. | | **`CLONE_SIGHAND`** | **Child shares signal handlers with the parent.** | | `CLONE_PTRACE` | Retain any `ptrace` relationship with the parent. | | `CLONE_VFORK` | Parent is suspended until child calls `execve()` or `_exit()`. | | **`CLONE_PARENT`** | **Child's parent is the same as the caller's parent. (Create sibling thread)** | | **`CLONE_THREAD`** | **Child is placed in the same thread group as the caller. Ideal to be used with `CLONE_SIGHAND` and `CLONE_VM`.** | | **`CLONE_NEWNS`** | **Create the child in a new mount namespace.** Cannot be used with `CLONE_FS`. | | `CLONE_SYSVSEM` | Child shares System V semaphore undo values with the parent. | | `CLONE_SETTLS` | Use the `tls` argument. | | `CLONE_PARENT_SETTID` | Parent's TID is set to the value pointed by `parent_tidptr`. | | `CLONE_CHILD_CLEARTID` | Child's kernel thread ID is cleared when the child terminates. | | `CLONE_CHILD_SETTID` | Child's TID is set to the value pointed by `child_tidptr`. | | `CLONE_DETACHED` | Historically implied that the child would be detached (now unused). | | `CLONE_UNTRACED` | Tracing process cannot force `CLONE_PTRACE` on this child process. | | `CLONE_NEWCGROUP` | Child is created in a new cgroup namespace. | | `CLONE_NEWUTS` | Child is created in a new UTS namespace. | | `CLONE_NEWIPC` | Child is created in a new IPC namespace. | | **`CLONE_NEWUSER`** | **Child is created in a new user namespace.** Cannot be used with `CLONE_FS`. | | **`CLONE_NEWPID`** | **Child is created in a new PID namespace.** | | `CLONE_NEWNET` | Child is created in a new network namespace. | | `CLONE_IO` | Child shares an I/O context with the parent. | 2. `stack_start`: the starting address for user mode stack 3. `stack_size`: the size of user stack, set to 0 usually 4. `parent_tidptr` and `child_tidptr`: points to id of parent and child process 5. `tls`: thread local storage ```c long _do_fork(unsigned long clone_flags, unsigned long stack_start, unsigned long stack_size, int __user *parent_tidptr, int __user *child_tidptr, unsigned long tls) { struct completion vfork; struct pid *pid; struct task_struct *p; int trace = 0; long nr; /* * Determine whether and which event to report to ptracer. When * called from kernel_thread or CLONE_UNTRACED is explicitly * requested, no event is reported; otherwise, report if the event * for the type of forking is enabled. */ if (!(clone_flags & CLONE_UNTRACED)) { if (clone_flags & CLONE_VFORK) trace = PTRACE_EVENT_VFORK; else if ((clone_flags & CSIGNAL) != SIGCHLD) trace = PTRACE_EVENT_CLONE; else trace = PTRACE_EVENT_FORK; if (likely(!ptrace_event_enabled(current, trace))) trace = 0; } // create a child process and return the task_struct of child process p = copy_process(clone_flags, stack_start, stack_size, child_tidptr, NULL, trace, tls, NUMA_NO_NODE); add_latent_entropy(); if (IS_ERR(p)) return PTR_ERR(p); /* * Do this prior waking up the new thread - the thread pointer * might get invalid after that point, if the thread exits quickly. */ trace_sched_process_fork(current, p); pid = get_task_pid(p, PIDTYPE_PID); nr = pid_vnr(pid); if (clone_flags & CLONE_PARENT_SETTID) put_user(nr, parent_tidptr); if (clone_flags & CLONE_VFORK) { p->vfork_done = &vfork; init_completion(&vfork); get_task_struct(p); } wake_up_new_task(p); /* forking complete and child started to run, tell ptracer */ if (unlikely(trace)) ptrace_event_pid(trace, pid); if (clone_flags & CLONE_VFORK) { if (!wait_for_vfork_done(p, &vfork)) ptrace_event_pid(PTRACE_EVENT_VFORK_DONE, pid); } put_pid(pid); return nr; } ``` ### `copy_process()` * Verify the flags as specified in the table above. For example, `CLONE_NEWNS` cannot be used with `CLONE_FS`. * Call `dup_task_struct()` to create a new `tak_struct` for the new task * Call `copy_creds()` to copy the certificate of the parent process. * Call `sched_fork()` to initialize some data structures with regrad to task scheduling. * Call `copy_files()`, `copy_fs()`, `copy_signal()`, `copy_mm()`, `copy_namespaces()`, `copy_io()`, `copy_thread_tls()` to copy necessaty information. * Call `alloc_pid()` to allocate `pid` structure and PID to the new task * Call `pid_vnr()` to allocate a global PID * Set `group_leader` and TGID ### `dup_task_struct()` * Call `alloc_task_struct_node()` to allocate a new process descriptor for the new process. * Call `alloc_thread_stack_node()` to allocate kernel stack for the new process. * Call `arch_dup_task_struct()` to copy the parents' process descriptor to the new process's. * Make the `stack` in the new process's process descriptor point to the new kernel stack. * Call `set_task_stack_end_magic()` to set a magic number at the top of the kernel stack to detect stack overflow. ### `copy_thread()`
stack_layout_fork

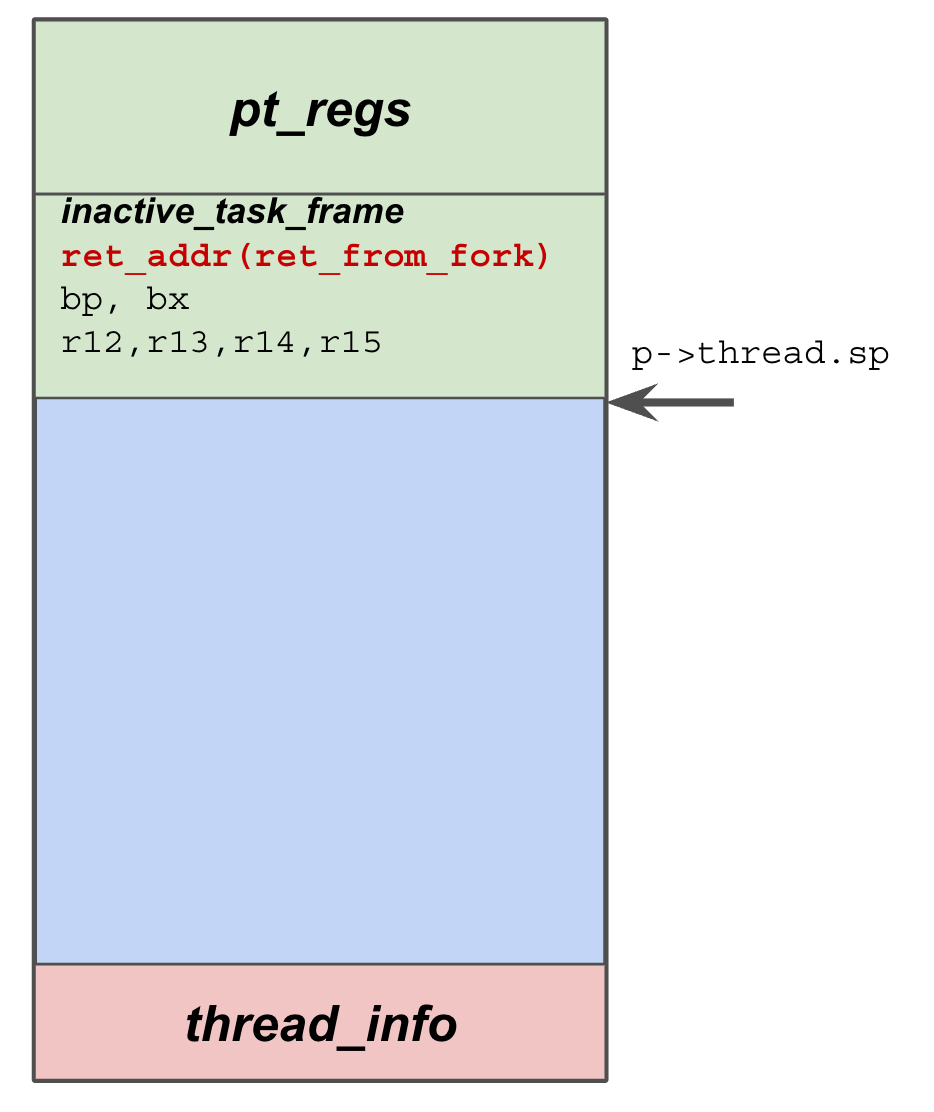

This is the stack layout after `copy_thread()`. Also the rough layout when the newly created thread is enqueued into runqueue. The top of the stack can be calculated with `task_stack_page(p)+THREAD_SIZE`. The stack grows from top to bottom. To the top of the kernel stack is the `struct pt_regs`. Here, `copy_thread()` used a structure called `struct fork_frame`, which contains a `struct inactive_task_frame` and a `struct pt_regs`. The bottom of the `struct fork_frame` is a field called `ret_addr`. This is essentially the first function (`ret_from_fork()`) gets run when this newly created thread gets running (scheduled by runqueue). When the scheduler decides to run a thread, it will call `context_switch()`, which internally calls `switch_to()`, which is just a macro around `__switch_to_asm`. ```c #define switch_to(prev, next, last) \ do { \ ((last) = __switch_to_asm((prev), (next))); \ } while (0) ``` `__switch_to_asm` is simply playing around the `struct fork_frame` we discussed above. It: * Saves the callee-saved registers. * Switches the stack pointer (`%rsp`) from Thread A's stack to Thread B's stack using the `TASK_threadsp` macro. This ensures that when Thread B is executed, it has its own separate stack. * Restores callee-saved registers for Thread B from its stack. Eventually, only the `ret_addr` field remains in the stack. **This is very important**: we **`jump`** to the `__switch_to()` (Note that it is different from `switch_to()`) function. Hence no return address will be pushed into the stack. Later on, when `__switch_to()` finishes and returns, the hardware will use the last field in the stack, which is the `ret_addr` field we placed there during `copy_thread()`. ### `sched_fork()` * Initialize data structures with regard to scheduling. * Set the `state` of the `task_struct` to `TASK_NEW` to indicate that the task has just beenc created and not yet able to be added to the scheduler. * Inherit the priority `normal_prio` from parent. * Set up priority class of child task. * Call `init_entity_runable_average()` to initialize the members related to the scheduling entity of the child process. * Call `__set_task_cpu()` function to set CPU for child process. * Call `task_fork()` of the scheduling class to finish some initialization of scheduler. The function will execute the scheduler-specific set of methods. > ```c > static void task_fork_fair(struct task_struct *p) > { > struct cfs_rq *cfs_rq; > struct sched_entity *se = &p->se, *curr; > struct rq *rq = this_rq(); > struct rq_flags rf; > > rq_lock(rq, &rf); > update_rq_clock(rq); > > cfs_rq = task_cfs_rq(current); > curr = cfs_rq->curr; > if (curr) { > update_curr(cfs_rq); > se->vruntime = curr->vruntime; > } > place_entity(cfs_rq, se, 1); > > se->vruntime -= cfs_rq->min_vruntime; > rq_unlock(rq, &rf); > } > ``` > > The `task_fork_fair` function is part of the Completely Fair Scheduler (CFS) in the Linux kernel, which is designed to ensure a fair distribution of CPU time among tasks. > > When called, the function is setting up the scheduling attributes for a newly forked task. It begins by declaring local variables for the run queue (`rq`), the scheduling entities (`se` and `curr`), and flags for the run queue (`rf`). > > To prevent concurrent modifications, the function locks the current run queue using `rq_lock(rq, &rf)`. It then updates the run queue's time reference with `update_rq_clock(rq)`. > > The function fetches the `cfs_rq`, the run queue for the Completely Fair Scheduler, associated with the currently executing task. If there is a currently executing scheduling entity on the run queue, it updates its statistics and sets the `vruntime` (virtual runtime) of the new task's scheduling entity (`se`) to match that of the current task's `vruntime`. **This ensures fairness in the task's starting execution time compared to others.** > > Next, it places the scheduling entity of the newly forked task into the run queue with the `place_entity` function. > > To make sure the newly forked task does not start at a disadvantage, it adjusts the `vruntime` of the scheduling entity by subtracting the `min_vruntime` of the run queue (the new process inherits the `vruntime` from `curr` and the `vruntime` of `curr` can be quite high. Therefore, the new process may be starved). > > Finally, the function releases the lock on the run queue using `rq_unlock(rq, &rf)`, allowing other tasks or operations to interact with the run queue. * Call `init_task_preempt_count()` to initialize `preempt_count` inside `thread_info`. ### Return from Creating Task Routines After calling `_do_fork()`, the child process is added to the scheduler and will be scheduled sooner or later. The new process will start from `ret_from_fork`. > **Arm64** > > If the new process is a kernel thread, the address of the thread function is stored in register x19, and the parameter of the thread function is stored in register x20. If the new process is a user process, the value of register x19 is 0. > > The execution process of function `ret_from_fork` is as follows: > > * The function `schedule_tail` called to perform cleanup operations for the previous process. > * If the value of register x19 is 0, it means that the current process is a user process. In this case, register x28 stores the address of current process's `thread_info` structure, and then jumps to label `ret_to_user` to return to user mode. > * If the value of register x19 is not 0, it means that the current process is a kernel thread. In this case, it calls the thread function. `copy_thread_tls()` in `copy_process()`is a wrapper around `copy_thread()` in architectures where `tls` is not defined. It mainly set up the kernel context for the new child process. In ARM64, the `copy_thread()` function copies the parent's stack frame to the child process and sets the X0 register in the stack frame to 0. This indicates that `_do_fork` will return 0 when returning to user space.
